Ripped usb-c

Ripped usb-c

guy ripped the usb port.. shit happens
step one is to rebuild the traces and ripped off pads and use resin epoxy
step two is to scrape off the epoxy to reviel the pads copper

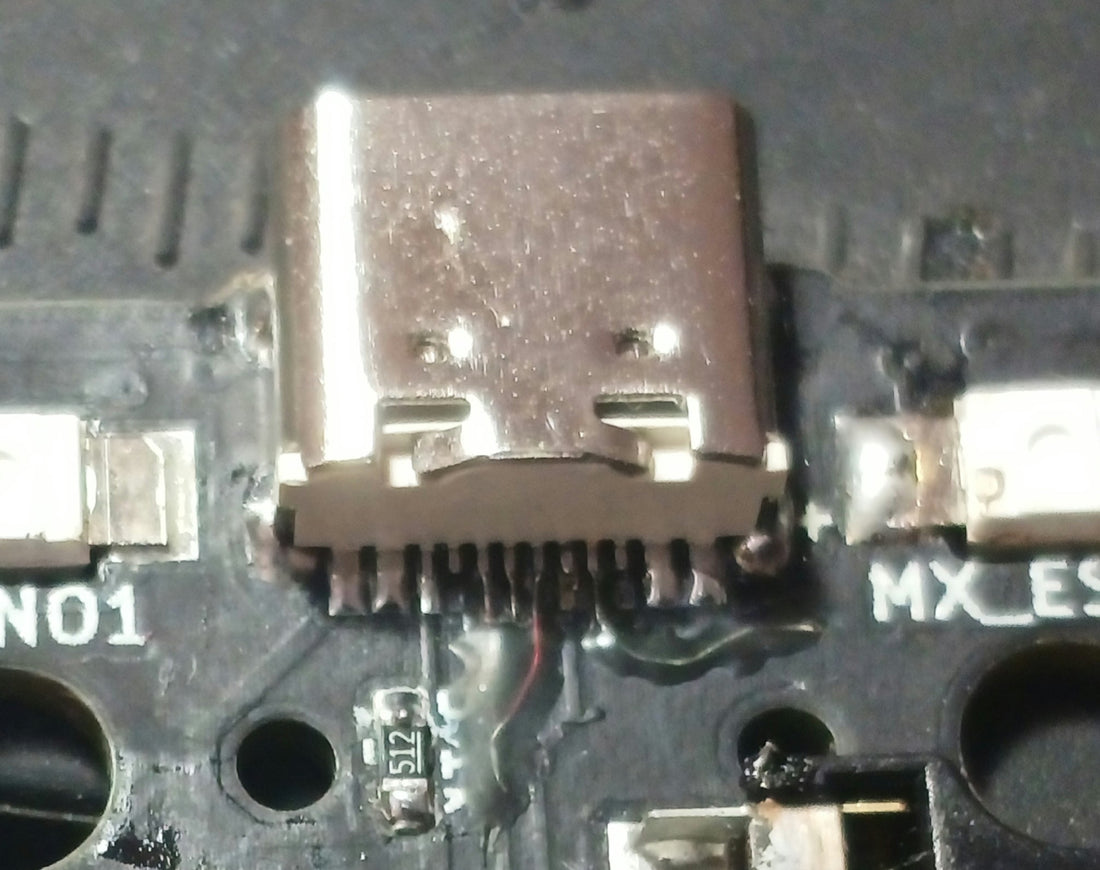

step three to solder the usb and pretend none of this ever happened

these usb port rips usually happens when the factory solder reflow is not strong enough either due to cold joints, bad solder and stuff, in this job we use 60/40 solder with good heat so the solder bonds well with the housing

all in all this puppy aint goin nowhere.
